Entecs Co., Ltd. a company specialized in environmental pollution control
facilities and energy plant will be always with you.
1. Package type rotary filter thickener
Package-type Rotary Filter Thickener consists of a non-powered compression roller, air circulation system and drum filter for solids recovery. This unit reliably and effectively concentrates low sludge produced in sewage and wastewater treatment to the desired concentration of TS concentration of 6-12% and at the same time achieves a solid recovery rate of more than 95%. In addition, since it is manufactured as a package type, it is easy to install additionally in the existing process, and stable operation is possible without interruption of the entire process even in the case of failure.

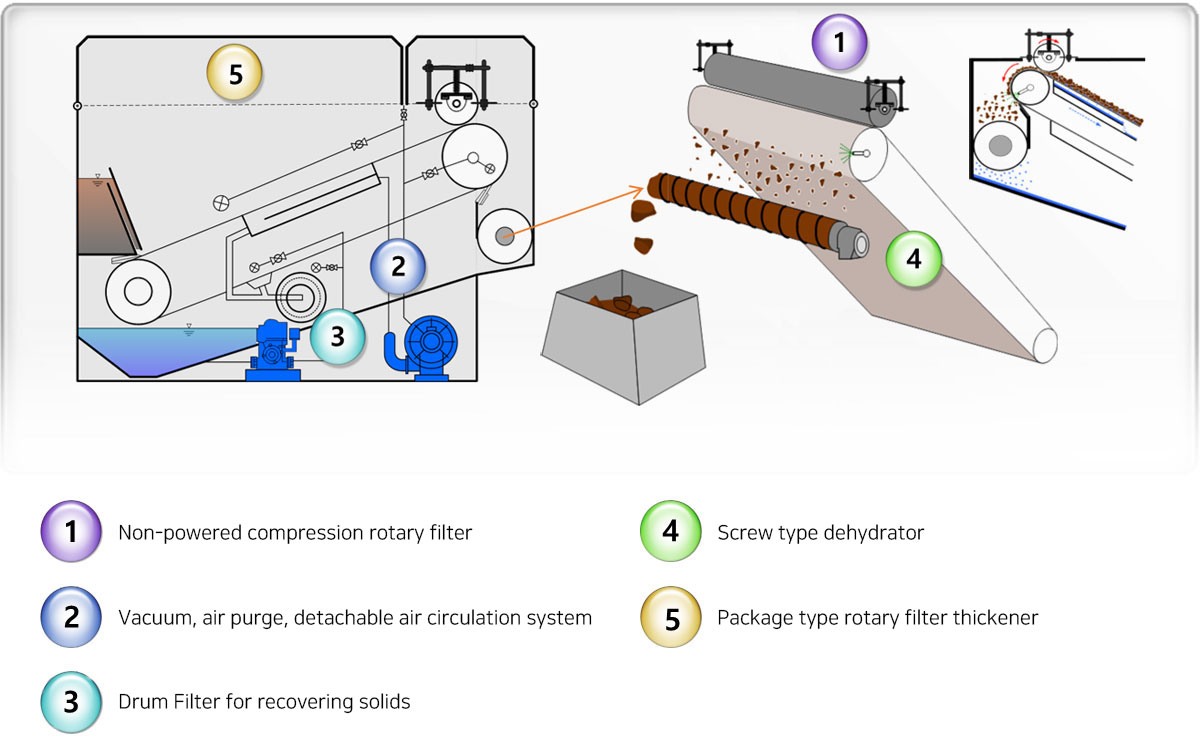

2. Components of package type rotary filter thickener
3. Features of rotary filter thickener

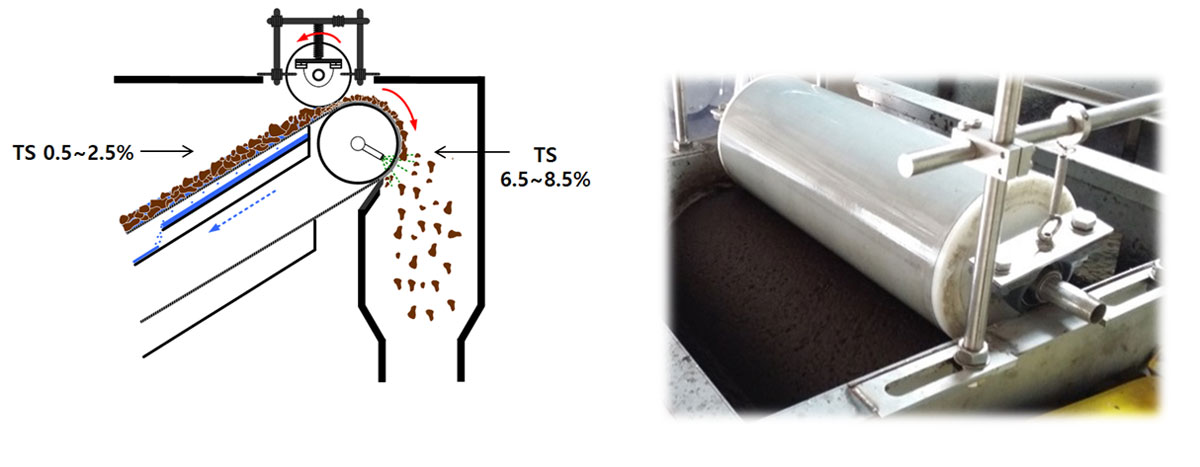

○ Stable and high efficiency concentration by non-powered compression rotary roller
◾ Compression roller operation by rotating force of belt filtration filter rotated by up/down rotation roller
◾ Condensed sludge passes between belt filtration filter and compression roller to increase the concentration efficiency
◾ Secures a stable concentration efficiency at a certain level despite the poor coagulation state by the site situation.
◾ It can move up, down, left and right and operate without impact load even when large impurities enter the sludge.

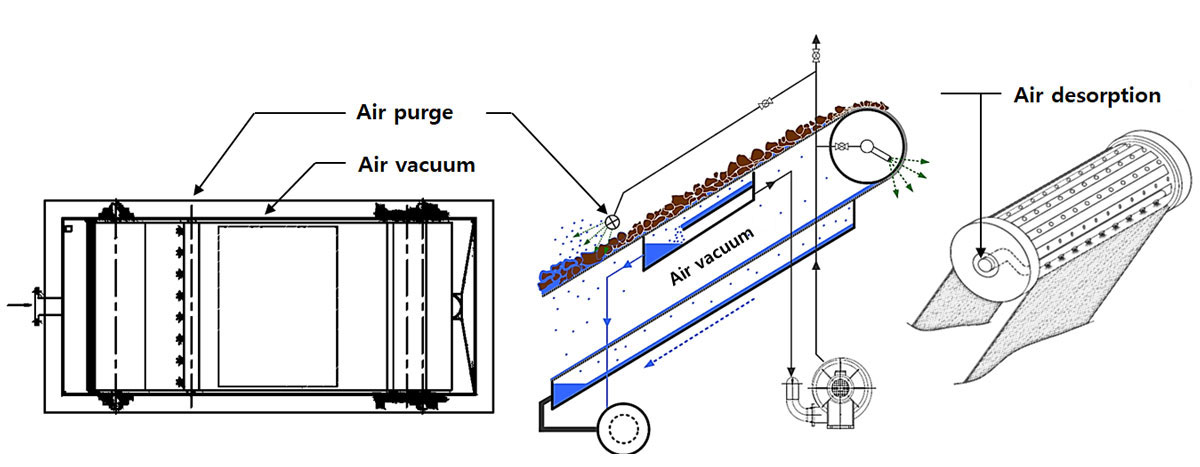

○ Maximizes concentration efficiency and remove and clean the sludge by air cycle system
◾ Improves the primary solid-liquid separation efficiency of coagulated sludge by installing vacuum part at the bottom of belt filtration filter
◾ Improves the secondary solid-liquid separation efficiency by injecting a part of the air sucked for the vacuum to the coagulated sludge
◾ Part of the air sucked for vacuum maintenance is strongly sprayed through the special nozzle to the lower part of the belt filtration
filter to remove the coagulated sludge compressed on the belt filtration filter and clean the filter with air.

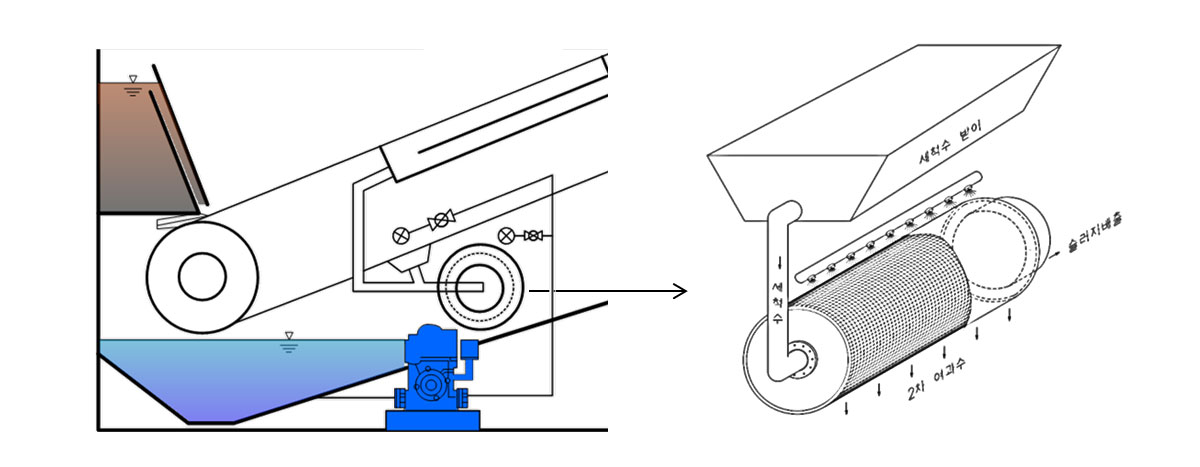

○ Maximizes recovery rate through drum filtration filter
◾ Secondary solid-liquid separation of solids in concentrated (dehydrated) treating water (filtrate) discharged through vacuum and belt filtration
filter wash units
◾ Stable and high treatment efficiency of large amount of solids contained in the existing high concentrated treating water: More than 95%
of recovery rate
◾ Minimizes the return water load of the associated treatment facility by achieving stable and high recovery rate
◾ Recycle the concentrated filtrate into the rinsing water of the belt filtration and drum filtration filters

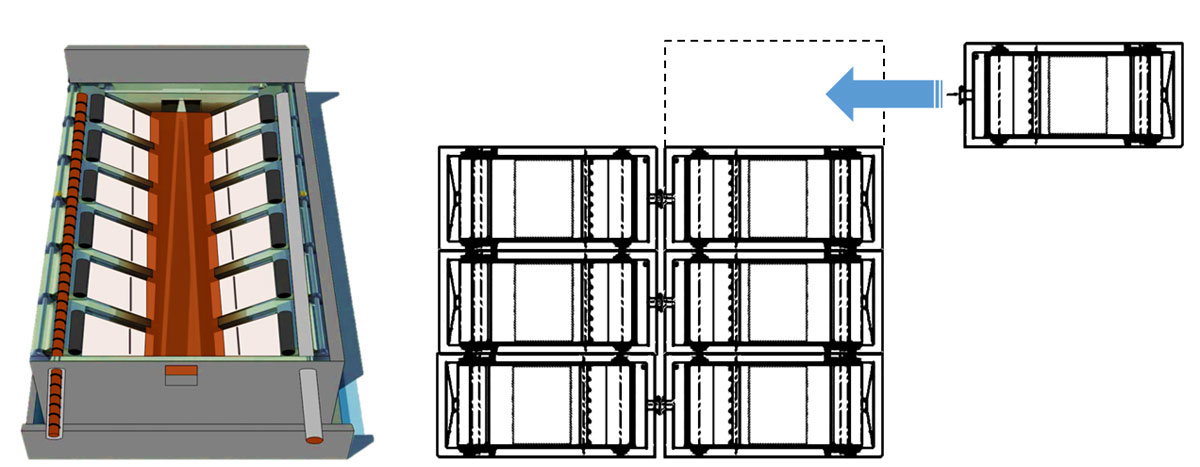

○ Package Type Rotary Filter Thickener
◾ Produced in unit packages with suitable capacity for site conditions: 5, 10. 50, 100 (m3/hr)
◾ When expanding the treatment facility and increasing the processing capacity, only the filter concentrator (dehydrator) of the unit cell type
can be installed.
◾ Even if the product is repaired or broken, only part of the product is stopped, so continuous operation is possible without
interruption of the treatment process.
◾ Possible to operate suitable for site conditions such as the whole operation or the operation of some unit concentrator

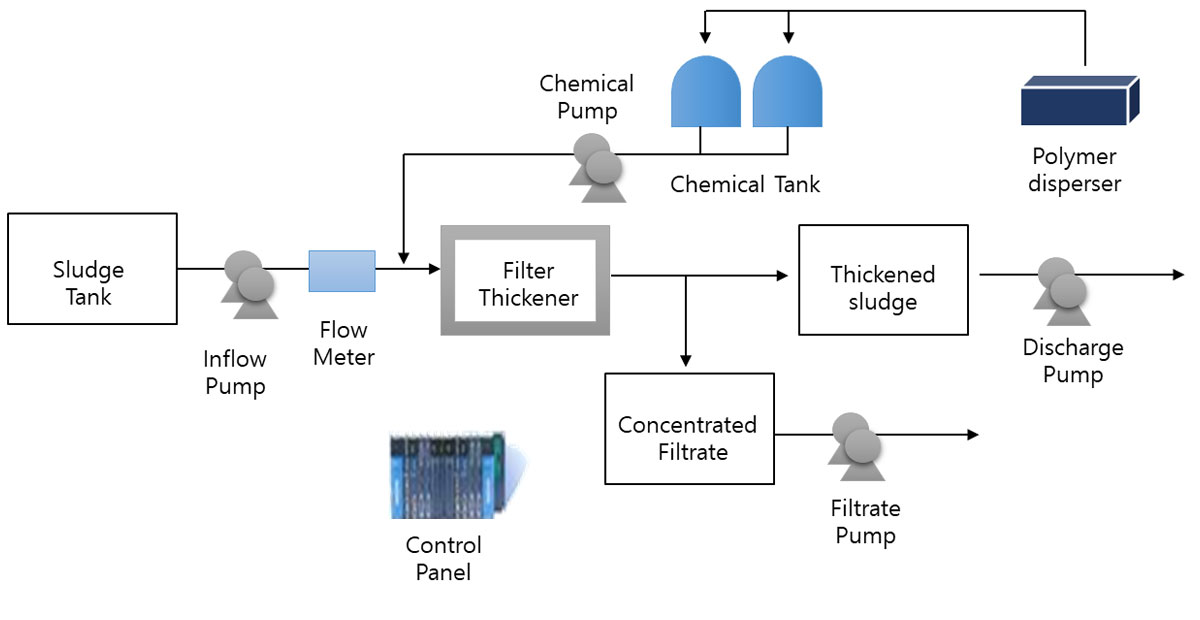

4. Compression rotary filter thickener system
